ARDEX DS 70™

Acoustic Mat

• Fast and easy installation with HENRY® 356C MultiPro™ Premium Multipurpose Carpet and Sheet Vinyl Adhesive
• Crack isolation up to 1/8" (3 mm)
• Set tile directly onto ARDEX DS 70

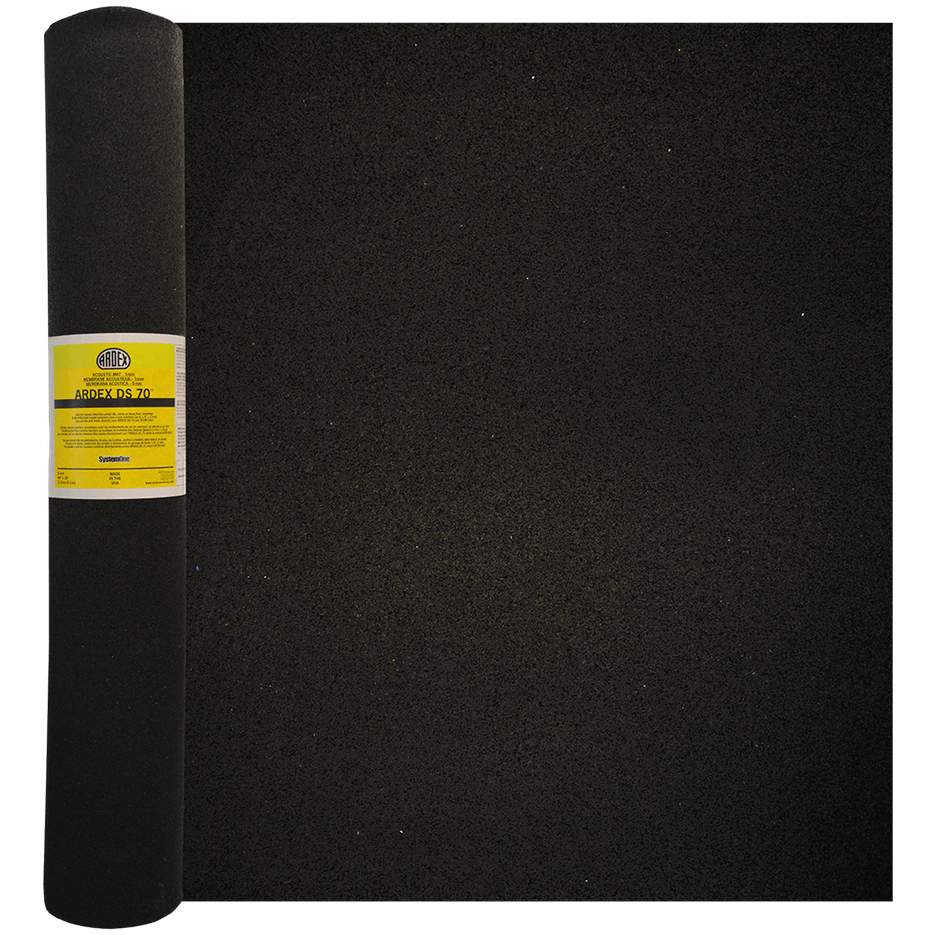

ARDEX DS 70™ Acoustic Mat is a high-performance, flat, resilient, sound-control underlayment made from a formulation of high-quality, post-consumer-recycled, wear- and water‐resistant rubber granules. It is used directly under hard surface flooring (tile, stone and wood) on above-grade concrete and wood joist substrates. ARDEX DS 70 is environmentally friendly as it is made from 92% recycled rubber. It can be installed quickly and easily using HENRY_® 356C MultiPro™ Carpet and Sheet Vinyl Adhesive pre-mixed adhesive. ARDEX DS 70 is available in a 2 mm or 5 mm thickness.

Key Features	Use for sound reduction under tile, stone or wood floor coverings Dual protection; sound reduction and crack isolation (up to 1/8″ / 3 mm) Can set tile and stone directly onto ARDEX DS 70 per ASTM C627 Ideal for use in condominiums, hotels and office buildings Fast and easy installation ARDEX DS 70 Systems achieve up to an Extra Heavy Commercial rating (Robsinson Test) per ASTM C627 Use on above-grade wood or concrete substrates
TECHNICAL DATA ARDEX DS 70™	Sizes Available: 2 mm Acoustic Mat – 48″ wide x 75′ long (1.2 m wide x 22.9 m long) roll 5 mm Acoustic Mat – 48″ wide x 30′ long (1.2 m wide x 9.1 m long) roll 6 mm Perimeter Isolation Strip – 2 1/2″ wide by 30′ long (64 mm wide by 9.14 m long) roll See Technical Data for complete details. ARDEX-DS-70-Technical-Data
Product Overview	ARDEX-DS-70-Product-Overview
SPECIFICATION	Tile-and-Stone-Sound-Deadening-ARDEX-DS-70-Tiling-System-Specification
SPECIFICATION WOOD FLOOR SYSTEM	Tile-and-Stone-Sound-Deadening-ARDEX-DS-70-Wood-Floor-System-Specification
