Key Features
|
- Use for setting porcelain, glass, quarry, ceramic, all types of mosaic and most natural stone* tiles
- Use over exterior concrete and masonry surfaces, as well as over common interior surfaces, including exterior grade plywood
- Extended open time of up to 60 minutes – double the ISO standard
- Especially suited for large format tile installations
- Very high bond strength, highly flexible for excellent shear resistance
- Unique, semi-pourable consistency makes it extremely easy to mix and apply
- Ideal for high traffic areas
- Special additives virtually eliminate the risk of efflorescence
- Use for interior and exterior floors and horizontal surfaces
- Outstanding coverage – 105 sq. ft. (9.75 sq. m) per bag with 1/4″ Sq. Notch trowel
- 4 hour pot life
|
Standards
|
Meets or exceeds ANSI A 118.4
Meets or exceeds ANSI A 118.11
Meets or exceeds ANSI A 118.15
ISO Classification: C2 FE(E) S1
Microtec® Technology
SystemOne |

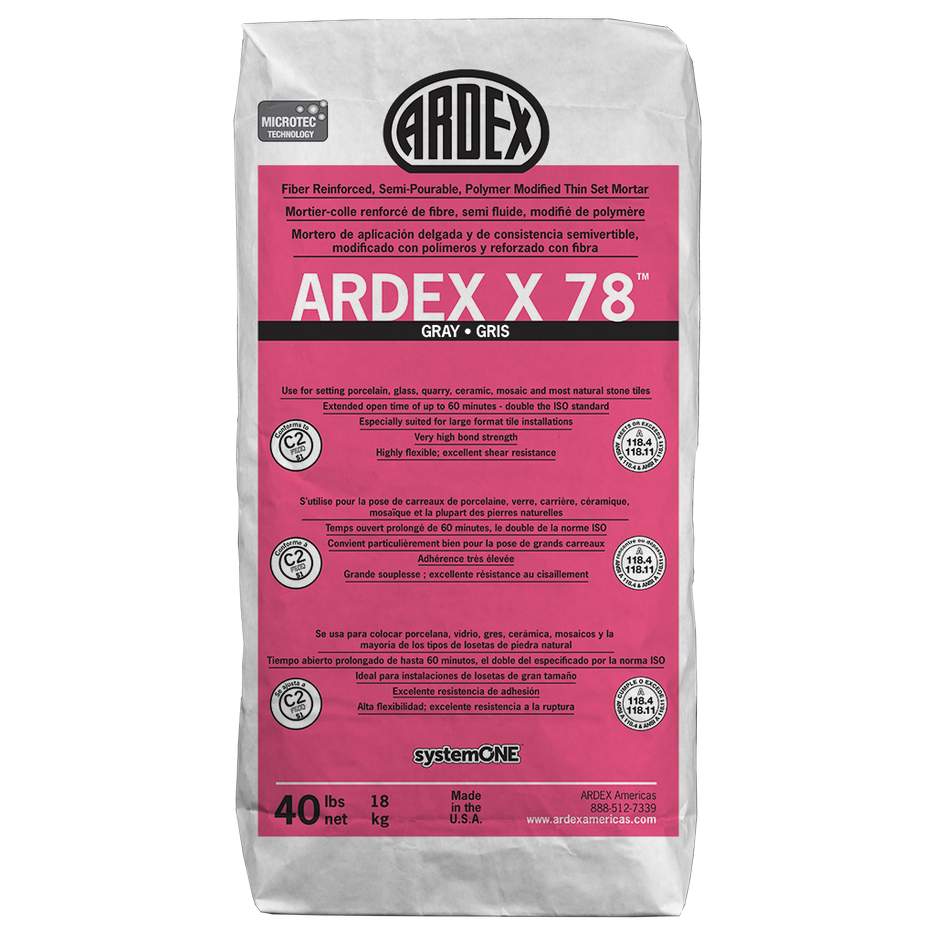

TECHNICAL DATA ARDEX X 78™ MICROTEC®
|
Installation
Mixing Ratio:
6 3/4 to 7 1/2 (6 1/4 to 7 L) of water per 40 lb. (18 kg) bag
*For smaller batches, use 2 1/4 to 2 3/4 parts powder to 1 part water by volume
Approximate Coverage per 40 lb. (18 kg) bag:
1/4″ x 1/4″ Sq. Notch towel; 105 sq. ft. (9.75 sq. m) per bag
1/4″ x 3/8″ x 1/4″ Sq. Notch towel; 75 sq. ft. (6.97 sq. m) per bag
1/2″ x 1/2″ Sq. Notch towel; 50 sq. ft. (4.65 sq. m) per bag
Performance
Open Time: Up to 60 minutes
Pot Life: 4 hours
Working Time: Up to 15 minutes
Time to Grout: 24 hours
Colors: Gray, White
VOC: 0
Packaging: 40 lb. (18 kg) net weight bag
Storage: Store in a cool, dry area. Do not leave bags exposed to sun.
Shelf Life: 1 year, if unopened
Warranty: ARDEX L.P. Standard Limited Warranty applies
